VOLVO VIDA

VOLVO VIDA DICE Diagnostic Tool

Dice Function:
1.Administration - General information, design and function
2.Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety)
3.service and maintenance
4.Engine with mounting and equipment
5.Electrical system
6.Power transmission
7.Brakes
8.Suspension and steering
9.Springs, shock absorbers and wheels
10.Body and interior - among other things, diagnostics, design and function, repair and spare part information
11.Other - special vehicles, e.g., ambulances, police cars. Components that deviate from standard.


Dice Installation Tips:
1. Run the CD-ROM ,<\Install\DVD\Vida_dvdheader\Main\setup.exe>,Choose the languages:[EN-GB...], install it to list, till all installations finished ,then restart the computer.
2. After restarted, once the service icon(The bottom of the right corner) is available(VIDA Status: Running) , and choose the below cracked executing documents [VIDA2014D_patch.EXE], install it to list, then retart the computer.

3. User Name: 1 or admin

Note 1:

Do not try to update the DICE unit with VIDA when it is running. otherwise you will get the Firmware status Red light.

when the yellow light is on, pls do not plug off the USB cable and diagnostic cable, or the dice will lose program.

Note 2:

After done self-test, pls click disconnect, then go to vida all in one, or u will get the dice lose program.

Requirement on Computer:

It must be windows WIN 7 Professional

It need to be Internet Explorer 9

Computer memory need over 3GRAM

C:// must have 40GB space

Soft ware must install on C://

It must be NTFS format

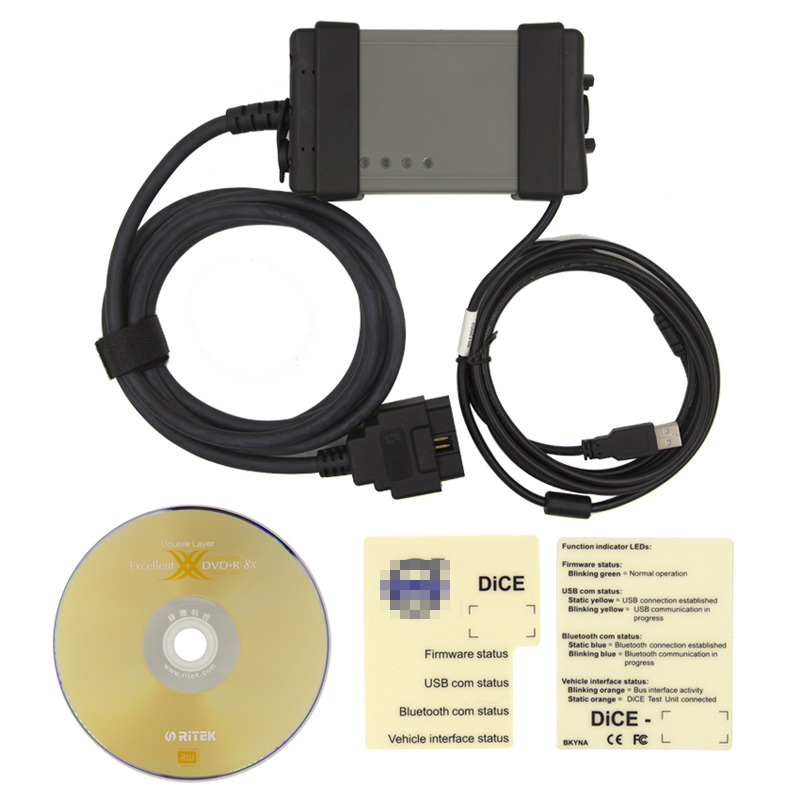

Packing List:

1 x DICE device OBD-II cable

1 x USB A to MINI USB angled cable

1 x DVD
